Client Access & IP Address Filter (Allowlist / Blocklist)

Overview​

ITVDesk provides an IP Address Filter to control which client IP addresses are allowed to connect to a virtual IP camera (ONVIF/RTSP).

This is the main tool behind:

  • Client Access UI actions
  • Context-menu actions like Connected Clients → Allow / Block

Rules are entered in CIDR form and support both IPv4 and IPv6.

Where To Find It​

In the Front Application:

  1. Open the Security tab
  2. Open IP Address Filter

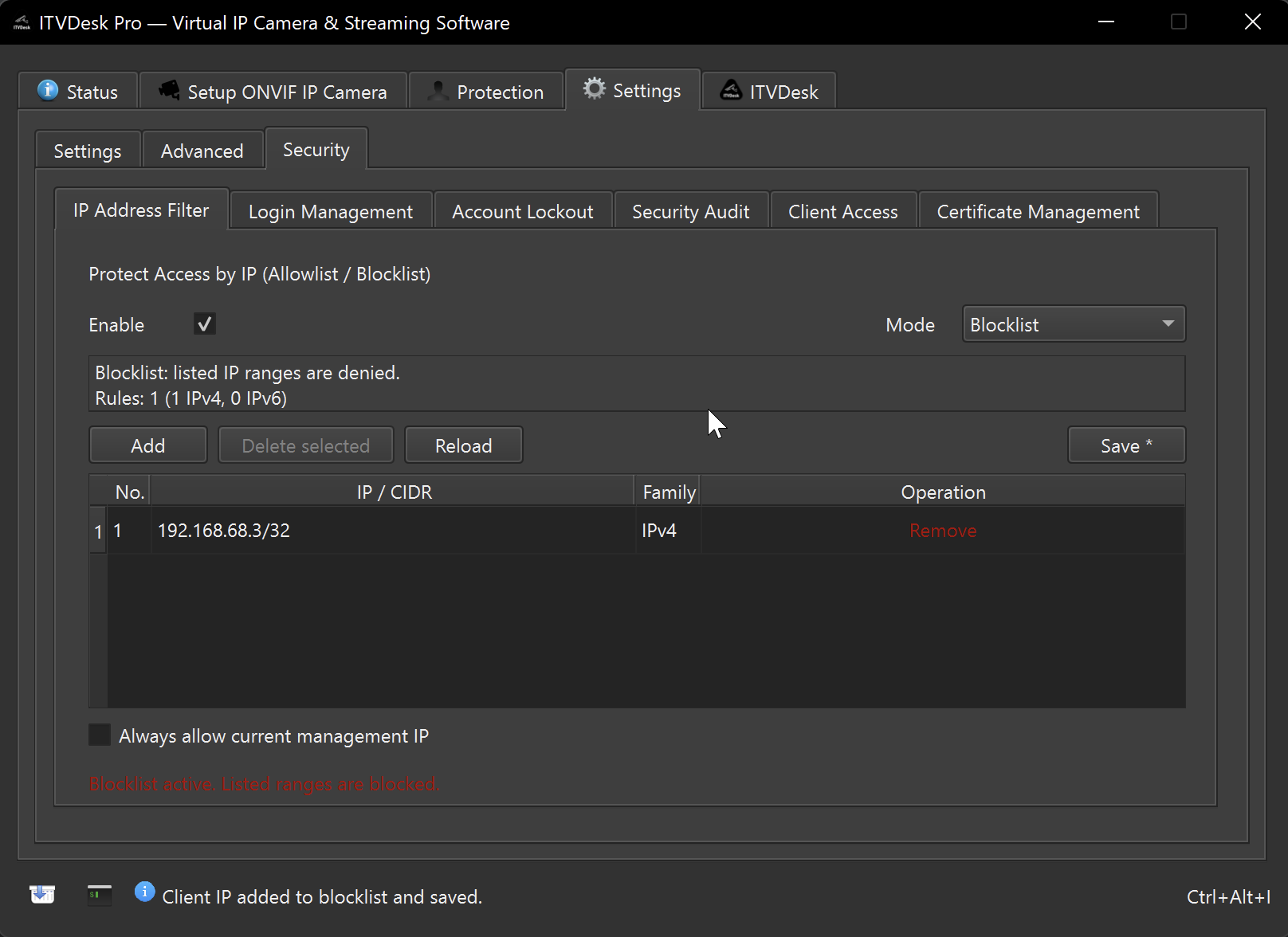

Security: IP Address Filter

Related UI:

  • Security → Client Access (recent clients + quick Allow/Block actions)

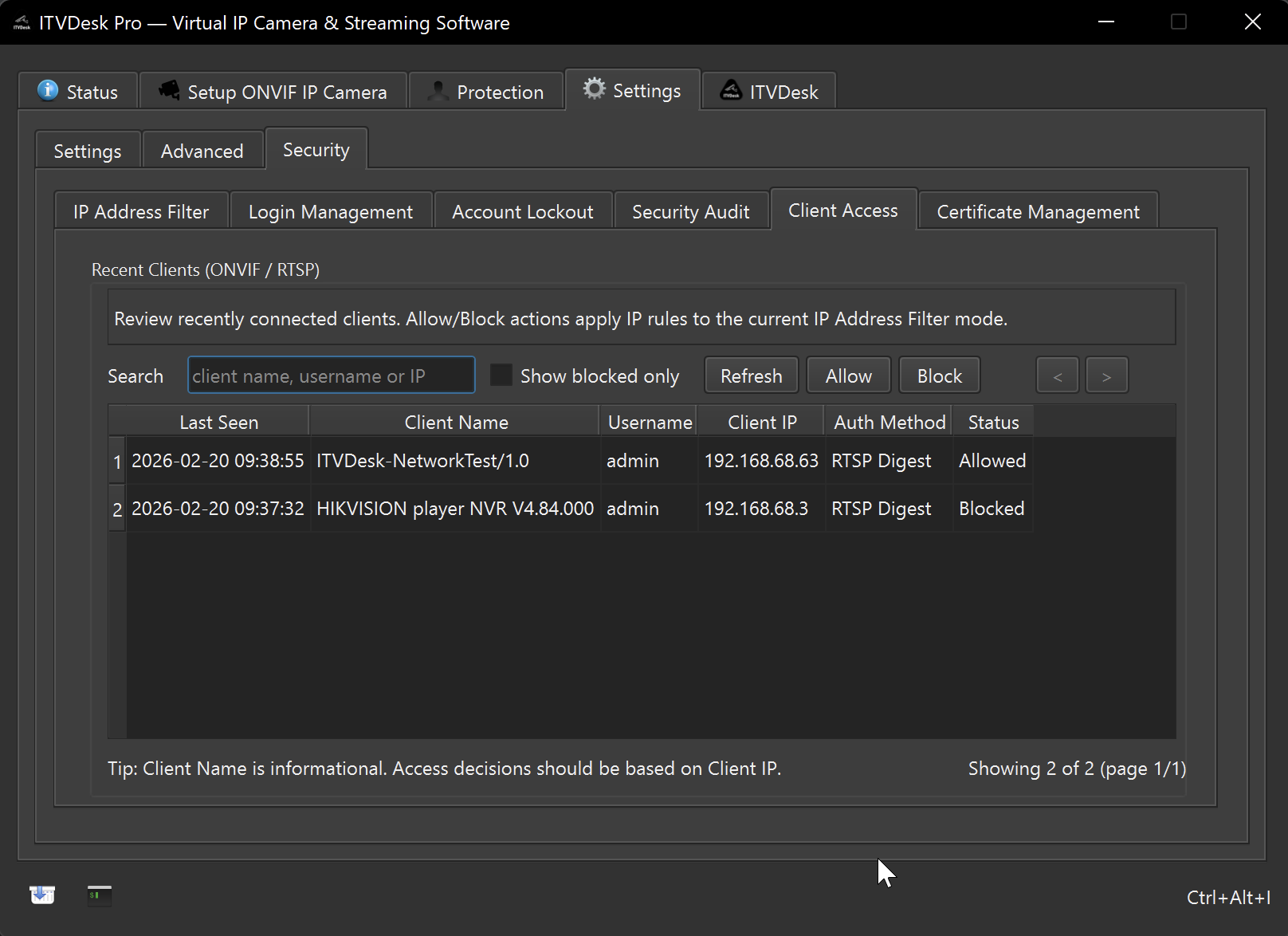

Security: Client Access

Rule Format​

Use:

IP/PREFIX

Examples:

  • 192.168.1.10/32 (single IPv4 host)
  • 192.168.1.0/24 (IPv4 network)
  • 2001:db8::1/128 (single IPv6 host)

Filter Modes​

The filter supports two modes:

Blocklist (Deny)​

Default behavior:

  • Clients are allowed unless they match a block rule.

Use this when:

  • You want to block only specific IPs.

Allowlist (Allow)​

Default behavior:

  • Clients are blocked unless they match an allow rule.

Use this when:

  • You want a strict access policy (only known IPs can connect).

Allow / Block Actions (What They Do)​

ITVDesk keeps the selected filter mode stable once enabled.

Meaning of actions depends on the current mode:

If Allowlist mode is active​

  • Allow adds the IP to the allowlist
  • Block removes the IP from the allowlist

If Blocklist mode is active​

  • Block adds the IP to the blocklist
  • Allow removes the IP from the blocklist

Limits​

The filter stores up to:

  • 20 IPv4 rules
  • 20 IPv6 rules

Total: 40 rules.

Management IP Safety Option​

When using Allowlist mode, ITVDesk can keep the current management host IP accessible (to reduce the chance of locking yourself out).

If you enable allowlist and remove all rules, ITVDesk will warn before saving.

Tips​

  • In allowlist mode, always add your management workstation IP first.
  • Use /32 and /128 for single-client rules.
  • Use Connected Clients to quickly add/remove the currently connected client without manually typing its IP.
